HD 10/122 TS Pressure Washer

The Preferred Choice of Professional Detailers and Valeters

The Kranzle HD K10 / 122 Portable Series was originally designed for the Hire Trade where heavy duty, low maintenance and exceptionally long life expectancy is a must. They have rapidly gone on to become the preferred choice of professional detailers and valeters due to their compact size and durability.

All Kranzle valve housings are manufactured from a unique forged brass, with a 10-year anti-corrosion guarantee – they cannot wear out! ‘Cheaper’ machines often seen in high street stores have electric motors that are designed to only last as long as the pump, which unbelievably is just 40 – 50 hours.

Total-Stop Automatic System:

The HD 7/122 TS features an automatic Total-Stop system. If the main switch is switched on, the motor is started via a pressure switch when opening the safety trigger gun. When closing the safety trigger gun the motor is switched off immediately.

Options:

• Kranzle K10 HD 10/122 [TS Automatic] or [Continuous]
• 10m Hose (M22xM22) [43416] or 20m Hose (M22xM22) [434161]

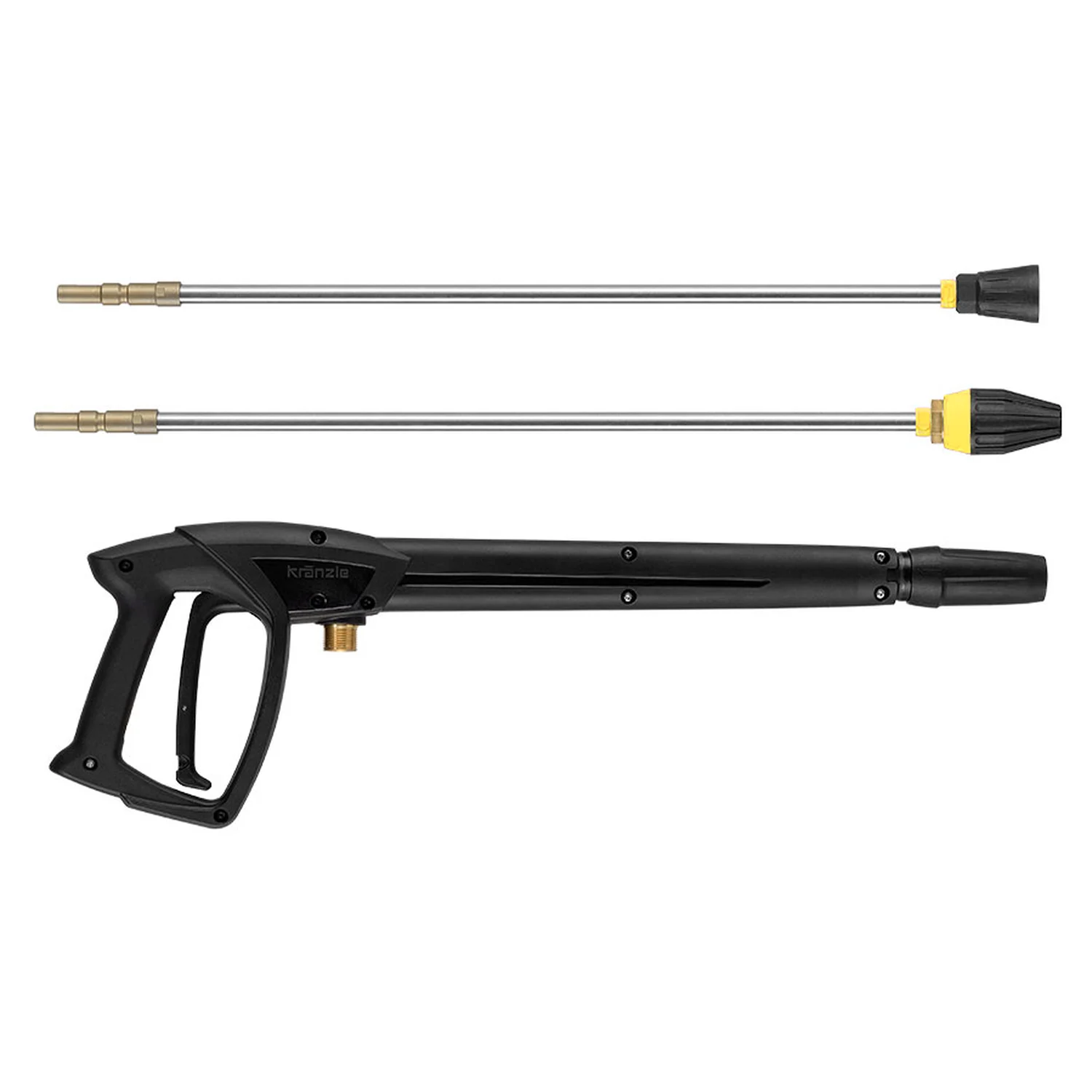

• Standard Starlet 4 Gun [12525] or Short Starlet 4 Gun [12526]
• Standard Length Flat Jet Nozzle [12435-028] or Short Flat Jet Nozzle [12390-028]
• Dirt Killer Lance [12438-028]

Features:

• Heavy duty yet compact (ideal for professional detailers / valeters)
• Exceptionally long life expectancy
• Unique ‘Soft Start’ – eases the initial load on the motor
• Can be used via the mains or with a generator
• Fully adjustable pressure
• Low maintenance
• Slow running, silent and durable electric motor
• 10 Year Anti-Corrosion guarantee
• Quick Release System
• 10m of steel braided rubber coated high-pressure hose
• 5m of power cable (complete with plug)
• Short or long trigger gun with safety catch
• Stainless steel lance with flat jet nozzle (short or long)

Technical Data:

• Power supply: 240v
• Operating pressure: 30-120 bar / 3-12 MPa
• Maximum admissible overpressure: 135 bar / 13.5 MPa
• Water flow rate: 10 l/m (600 l/h)
• Motor speed: 2800 rpm
• Connected load KW: 7.5 A, 50 Hz
• Power intake / Power output: 2.5 kW / 1.8 kW
• Weight: 22kg
• Dimensions (L x W x H) in mm: 440 x 200 x 330
