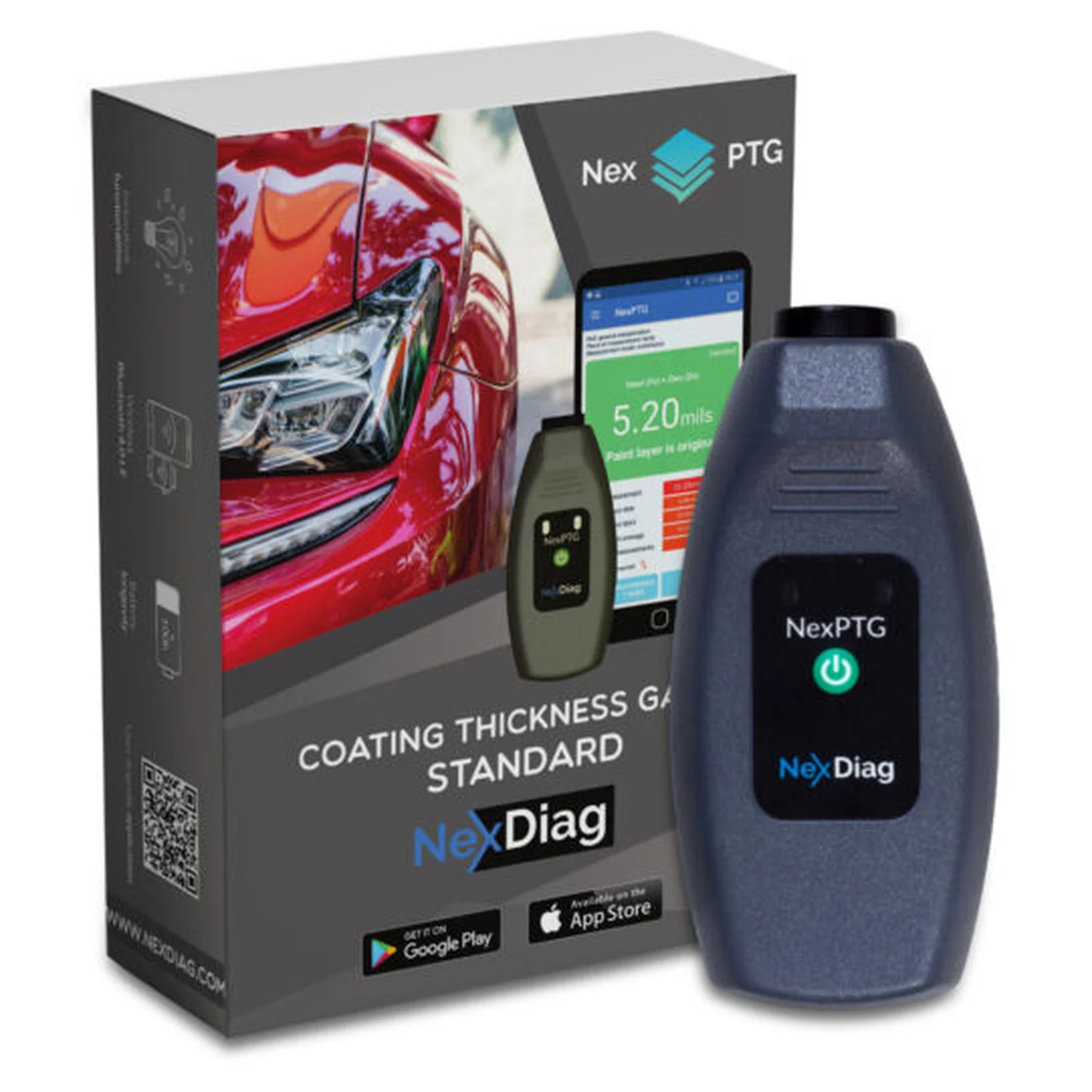

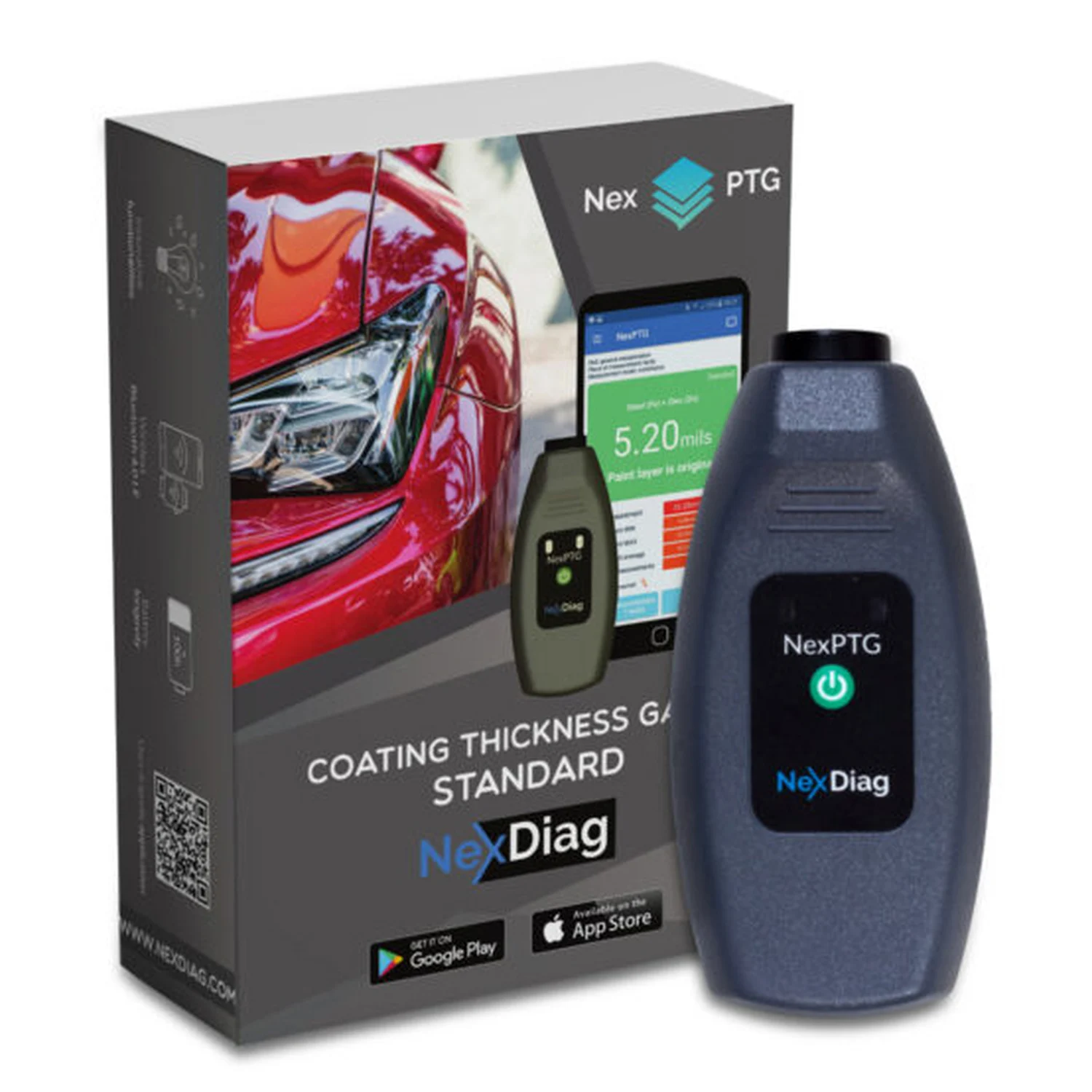

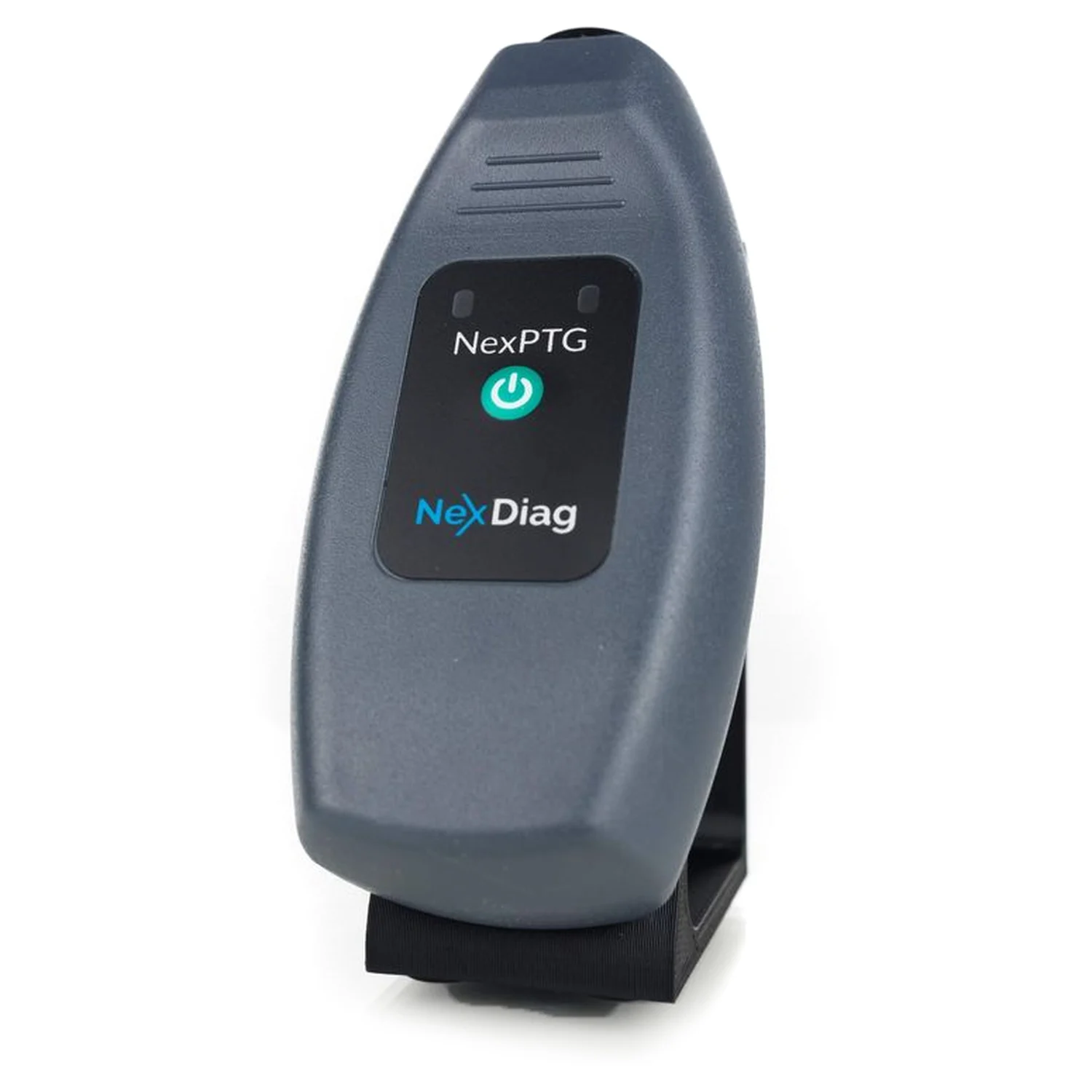

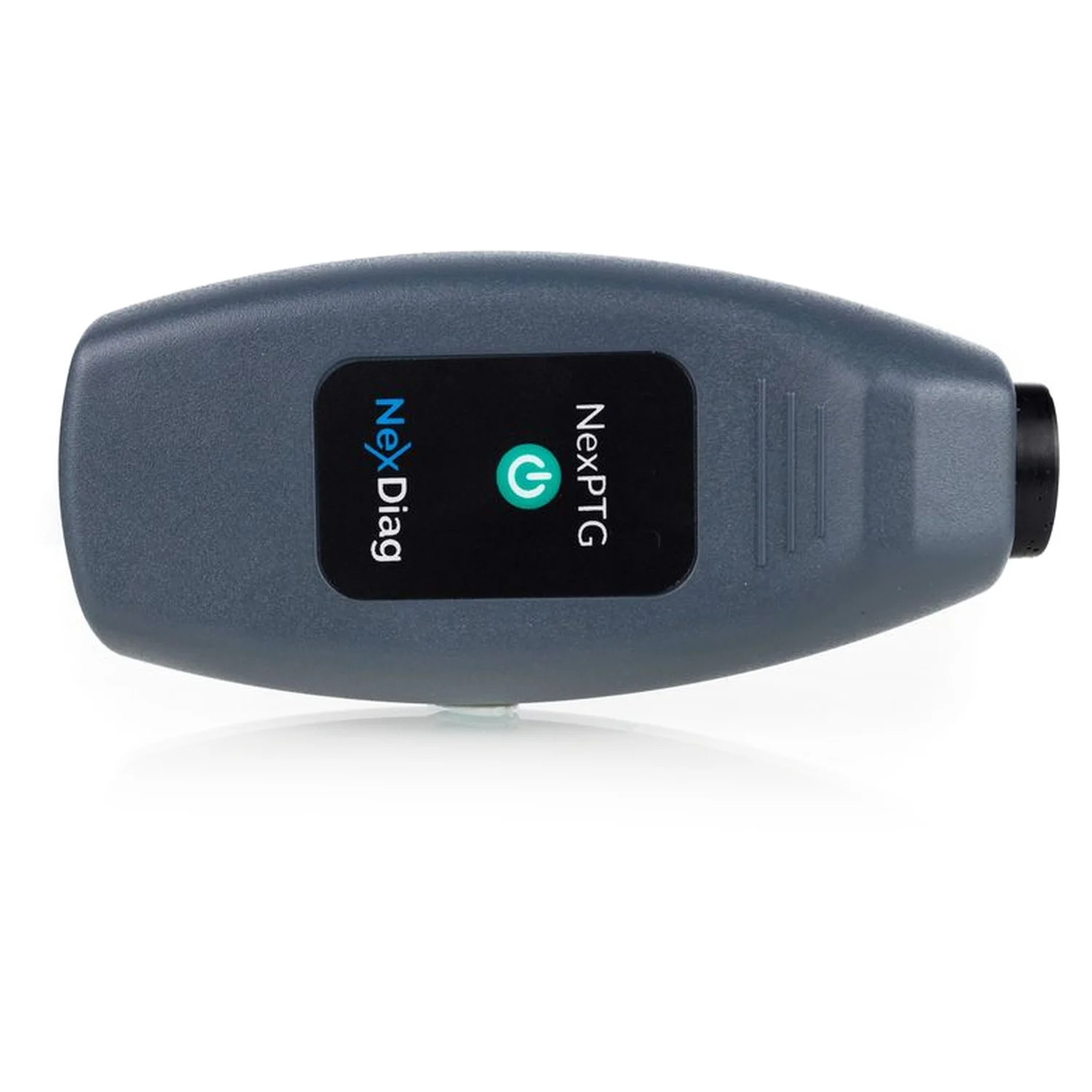

NexPTG Standard

Advanced paint depth reader, iOS & Android Compatible

The NexPTG Standard is a paint depth gauge which allows you to make measurements quickly and accurately, but with the added advantage of a number of additional innovative options to enhance the user experience, such as the ability to store up to 300 measurements.

The Standard Paint Depth Gauge also makes it possible to effectively test the thickness of a lacquer coat and the paint depth gauge automatically interprets the obtained results, informing the user about the current state of the substrate.

The device includes a dedicated supporting NexPTG application which can be installed on iOS or Android devices, with the application enabling users to examine surfaces with unprecedented accuracy. Using the Lacquer Coating Analysis System, users can also analyse the surface of the entire body in an instant with the application helping to interpret the results of measurements. All measurements are easily recorded thanks to the application, including the location of where they were taken on the vehicle.

Features

• Suggested measurement points
• Works on steel, galvanised steel & aluminium
• Flat measurement
• Measurement statistics
• Basic Lacquer Coating Analysis System
• V-groove in the probe for positioning on cylindrical parts
• Mils/Microns selection

The set comes complete with NexPTG device, calibration set, instruction manual and a set of alkaline batteries.

Specifications

• Accuracy: 0 – 1000 μm (0 – 39,37 mils)
• Measurement resolution: 10 μm (0,4 mils)
• Number of measurements per second: 10
• Measurement memory: Up to 300
• Probe housing: Flat
• Supported batteries: 2 x AA
• App compatible with iOS 8 or later & Android 4.3 or later

Download App:

• Apple Store – iOS
• Google Play – Android
