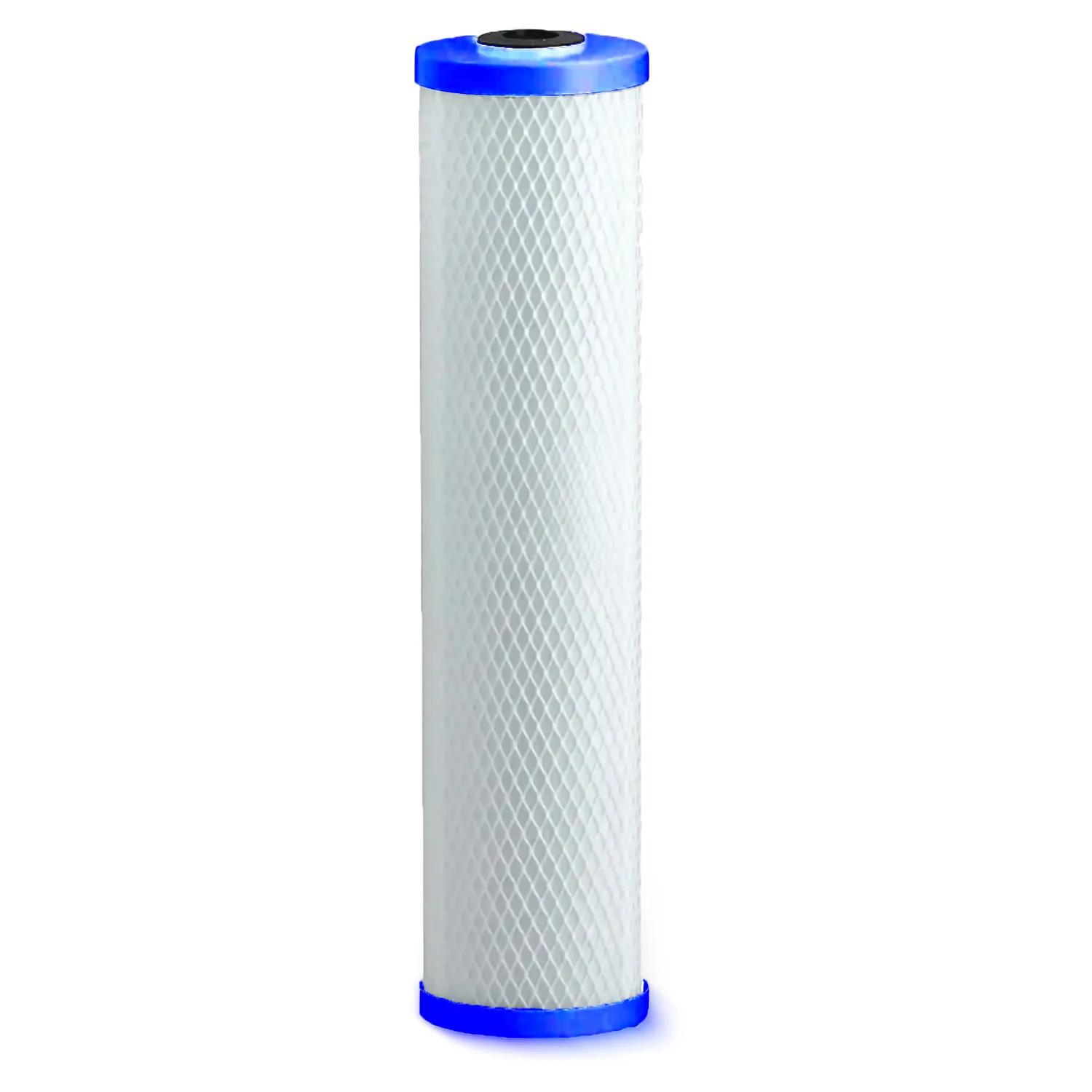

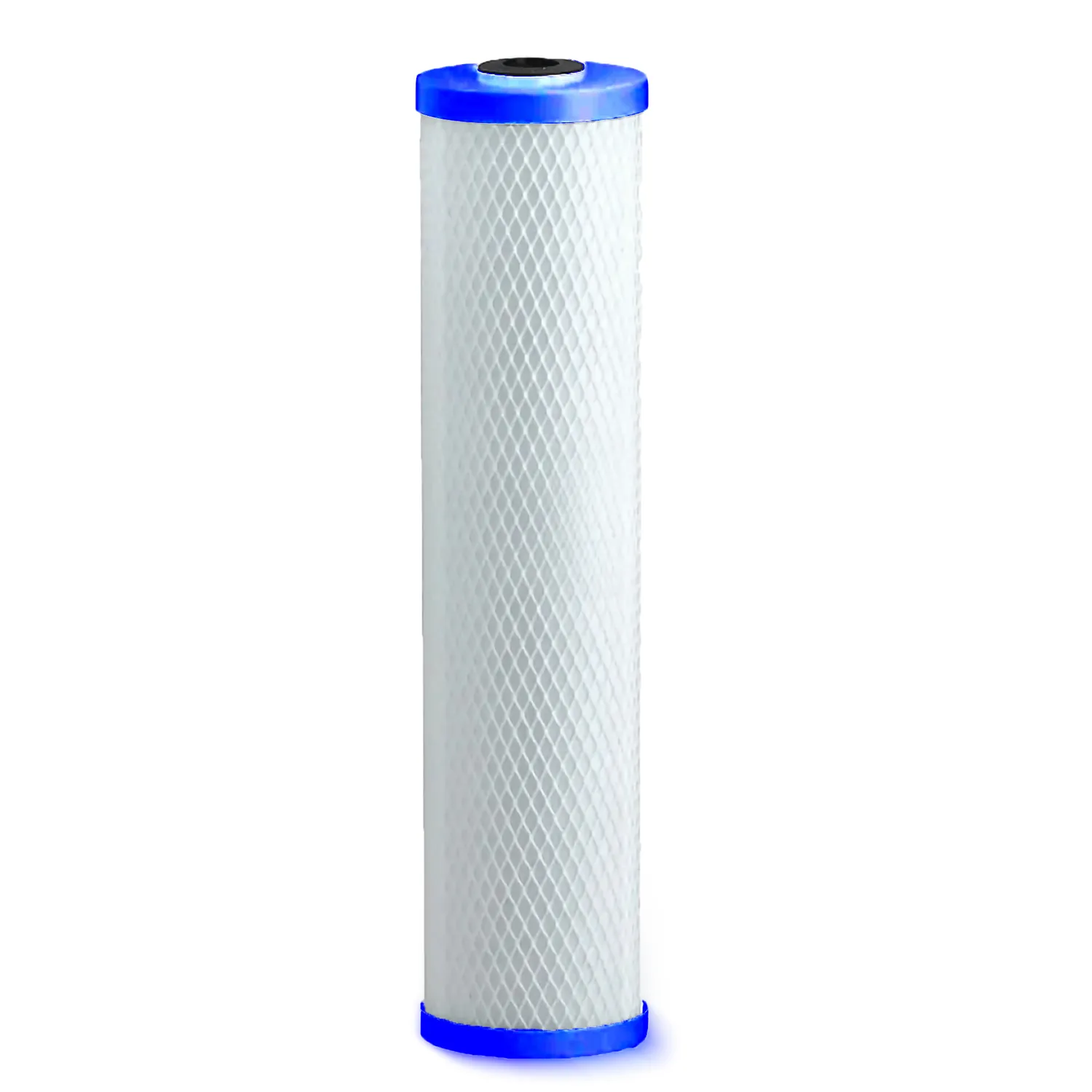

Carbon Cartridge 20LD

Industrial-Grade Chlorine Removal, Now 60% More Efficient

Don’t let budget-friendly mean compromise. The Aqua Gleam Carbon Block Cartridge Filter delivers industrial-strength water purification for batch processes where extended service life isn’t a priority—but performance is. Upgraded for 2019, its acid-washed bituminous carbon now removes 60% more chlorine (up from 35%) while targeting larger organics like benzene. With a 5-micron rating and high-flow design, it balances sediment capture and contaminant adsorption, all while reducing rinse-up finds common in non-treated carbons.

Why Choose the Aqua Gleam Carbon Cartridge?

✔ 60% chlorine removal – Upgraded carbon formula for reliable, cost-effective filtration.
✔ Acid-washed bituminous carbon – Microporous structure traps organics and reduces ash.
✔ Large diameter (4.5″) – Optimized for high-flow systems (15.1 LPM).
✔ EPDM seals & DOE ends – Durable, leak-proof integration into industrial setups.

Features

• Targets chlorine, benzene, and sediment – Multi-contaminant defence.
• 5-micron physical filtration – Blocks suspended solids without premature clogging.
• Pre-filtration compatible – Pair with DI resin filter to extend cartridge life.
• Acid-washed carbon – Minimizes rinse-up fines for cleaner operation.

Specifications

• Technology: Carbon Block Cartridge
• Material: Acid-washed bituminous carbon
• Micron Rating: 5
• Dimensions: 20″ x 4.5″ (Large Diameter)
• End Cap: Double Open Ended (DOE)
• 54,900L @ 2mg/l
• 439,200L @ 0.2mg/l
• Pressure drop 0.5 (Bar) & flow 15.1(LPM)
• Seal: EPDM
• Flow Rate: 15.1 litres per minute

How It Works

• Particle Filtration: Traps sediment and suspended solids at 5 microns.
• Adsorption: Millions of micropores (created at 870°C during activation) attract heavy metals and organics like benzene.
• Chemical Reaction: Converts chlorine to chloride ions—now 60% more efficient than previous formulations.

Pro Tip “Pair this with a SPECTRUM PSP pre-filter to catch sediment early and maximize the carbon’s chlorine-removal lifespan.”
